This article will explain a statistical modeling technique with an example. I will explain a logistic regression modeling for binary outcome variables here. That means the outcome variable can have only two values, 0 or 1. We will also analyze the correlation amongst the predictor variables (the input variables that will be used to predict the outcome variable), how to extract the useful information from the model results, the visualization techniques to better present and understand the data and prediction of the outcome. I am assuming that you have the basic knowledge of statistics and python.

The Tools Used

For this tutorial, we will use:

  1. Numpy Library
  2. Pandas Library
  3. Matplotlib Library
  4. Seaborn Library
  5. Statsmodels Library
  6. Jupyter Notebook environment.

Dataset

I used the Heart dataset from Kaggle. I have it in my GitHub repository. Please feel free download from this link if you want to follow along.

Let’s import the necessary packages and the dataset.

%matplotlib inline
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
import statsmodels.api as sm
import numpy as npdf = pd.read_csv('Heart.csv')
df.head()

The last column ‘AHD’ contains only ‘yes’ or ‘no’ which tells you if a person has heart disease or not. Replace ‘yes’ and ‘no’ with 1 and 0.

df['AHD'] = df.AHD.replace({"No":0, "Yes": 1})

The logistic regression model provides the odds of an event.

A Basic Logistic Regression With One Variable

Let’s dive into the modeling. I will explain each step. I suggest, keep running the code for yourself as you read to better absorb the material.

Logistic regression is an improved version of linear regression. We will use a Generalized Linear Model (GLM) for this example.

There are so many variables. Which one could be that one variable? As we all know, generally heart disease occurs mostly to the older population. The younger population is less likely to get heart disease. I am taking “Age” as the only covariate. We will add more covariates later.

model = sm.GLM.from_formula("AHD ~ Age", family = sm.families.Binomial(), data=df)
result = model.fit()
result.summary()

Image for post

The result summary looks very complex and scary, right? We will focus mostly on this part.

Image for post

Image for post

Hopefully, it looks a lot better now. As a reminder, here is the linear regression formula:

Y = AX + B

Here Y is the output and X is the input, A is the slope and B is the intercept.

Now, let’s understand all the terms above. First, we have the coefficients where -3.0059 is the B, and 0.0520 is our A. If a person’s age is 1 unit more s/he will have a 0.052 unit more chance of having heart disease based on the p-value in the table.

There is a standard error of 0.014 that indicates the distance of the estimated slope from the true slope. z-statistic of 3.803 means that the predicted slope is going to be 3.803 unit above the zero. And the last two columns are the confidence intervals (95%). Here the confidence interval is 0.025 and 0.079. Later we will visualize the confidence intervals throughout the length of the data.

Odds And Log Odds

To understand the odds and log-odds, we will use the gender variable. Because a categorical variable is appropriate for this. Check the proportion of males and females having heart disease in the dataset.

df["Sex1"] = df.Sex.replace({1: "Male", 0:"Female"})
c = pd.crosstab(df.Sex1, df.AHD)
c = c.apply(lambda x: x/x.sum(), axis=1)

Image for post

A logistic regression model provides the ‘odds’ of an event. Remember that, ‘odds’ are the probability on a different scale. Here is the formula:

If an event has a probability of p, the odds of that event is p/(1-p). Odds are the transformation of the probability. Based on this formula, if the probability is 1/2, the ‘odds’ is 1

Let’s calculate the ‘odds’ of heart disease for males and females.

c["odds"] = c.loc[:, 1] / c.loc[:, 0]

Image for post

The ‘odds’ show that the probability of a female having heart disease is substantially lower than a male(32% vs 53%) that reflects very well in the odds. Odds ratios are common to use while working with two population groups.

c.odds.Male / c.odds.Female

The ratio comes out to be 3.587 which indicates a man has a 3.587 times greater chance of having a heart disease.

Remember that, an individual probability cannot be calculated from an odd ratio

Another important convention is to work with log-odds which are odds in a logarithmic scale. Recall that the neutral point of the probability is 0.5. Using the formula for ‘odds’, odds for 0.5 is 1 and ‘log-odds’ is 0 (log of 1 id 0).

In our exercise where men have a greater chance of having heart disease, have ‘odds’ between 1 and infinity. At the same time, the ‘odds’ of women having a greater chance of having heart disease is 0 to 1.

Here is the log odds calculation:

c['logodds'] = np.log(c.odds)

Image for post

Here, the log-odds of the female population are negative which indicates that less than 50% of females have heart disease. Log-odds of males is positive and a little more than 0 which means more than half of the males have heart disease.

Let’s see the model summary using the gender variable only:

model = sm.GLM.from_formula("AHD ~ Sex1", family = sm.families.Binomial(), data=df)
result = model.fit()
result.summary()

Image for post

This result should give a better understanding of the relationship between the logistic regression and the log-odds. Look at the coefficients above. The logistic regression coefficient of males is 1.2722 which should be the same as the log-odds of males minus the log-odds of females.

c.logodds.Male - c.logodds.Female

This difference is exactly 1.2722.




Adding More Covariates

We can use multiple covariates. I am using both ‘Age’ and ‘Sex1’ variables here. Before we dive into the model, we can conduct an initial analysis with the categorical variables. Check the proportion of males and females having heart disease in the dataset.

df["Sex1"] = df.Sex.replace({1: "Male", 0:"Female"})
c = pd.crosstab(df.Sex1, df.AHD)
c = c.apply(lambda x: x/x.sum(), axis=1)

Image for post

Now, generate a model using both the ‘Age’ and ‘Sex’ variable.

model = sm.GLM.from_formula("AHD ~ Age + Sex1", family = sm.families.Binomial(), data=df)
result = model.fit()
result.summary()

Image for post

Understand the coefficients better. Adding gender to the model changed the coefficient of the ‘Age’ parameter a little(0.0520 to 0.0657). According to this fitted model, older people are more likely to have heart disease than younger people. The log odds for heart disease increases by 0.0657 units for each year.

If a person is 10 years older his or her chance of having heart disease increases by 0.0657 * 10 = 0.657 units.

In the case of the gender variable, the female is the reference as it does not appear in the output. While comparing a male and a female of the same age, the male has a 1.4989 units higher chance of having a heart disease.

Now, let’s see the effect of both gender and age. If a 40 years old female is compared to 50 years old male, the log odds for the male having heart disease is 1.4989 + 0.0657 * 10 = 2.15559 units greater than the female.

All the coefficients are in log-odds scale. You can exponentiate the values to convert them to the odds

A logistic regression Model With Three Covariates

Now, we will fit a logistic regression with three covariates. This time we will add ‘Chol’ or cholesterol variables with ‘Age’ and ‘Sex1’.

model = sm.GLM.from_formula("AHD ~ Age + Sex1 + Chol", family = sm.families.Binomial(), data=df)
result = model.fit()
result.summary()

As you can see, after adding the ‘Chol’ variable, the coefficient of the ‘Age’ variable reduced a little bit and the coefficient of ‘Sex1’ variable went up a little. The change is more in ‘Sex1’ coefficients than the ‘Age’ coefficient. This is because ‘Chol’ is better correlated to the ‘Sex1’ covariate than the ‘Age’ covariate. Let’s check the correlations:

df[['Age', 'Sex', 'Chol']].corr()

Image for post




Visualization of the Fitted Model

We will begin by plotting the fitted proportion of the population that have heart disease for different subpopulations defined by the regression model. We will plot how the heart disease rate varies with the age. We will fix some values that we want to focus on in the visualization. We will visualize the effect of ‘Age’ on the female population having a cholesterol level of 250.

from statsmodels.sandbox.predict_functional import predict_functional
values = {"Sex1": "Female", "Sex":0, "AHD": 1, "Chol": 250}
pr, cb, fv = predict_functional(result, "Age", values=values, ci_method="simultaneous")ax = sns.lineplot(fv, pr, lw=4)
ax.fill_between(fv, cb[:, 0], cb[:, 1], color='grey', alpha=0.4)
ax.set_xlabel("Age")
ax.set_ylabel("Heart Disease")

Image for post

We just plotted the fitted log-odds probability of having heart disease and the 95% confidence intervals. The confidence band is more appropriate. The confidence band looks curvy which means that it’s not uniform throughout the age range.

We can visualize in terms of probability instead of log-odds. The probability can be calculated from the log odds using the formula 1 / (1 + exp(-lo)), where lo is the log-odds.

pr1 = 1 / (1 + np.exp(-pr))
cb1 = 1 / (1 + np.exp(-cb))
ax = sns.lineplot(fv, pr1, lw=4)
ax.fill_between(fv, cb1[:, 0], cb[:, 1], color='grey', alpha=0.4)
ax.set_xlabel("Age", size=15)
ax.set_ylabel("Heart Disease")

Image for post

Here is the problem with the probability scale sometimes. While the probability values are limited to 0 and 1, the confidence intervals are not.

The plots above plotted the average. On average that was the probability of a female having heart disease given the cholesterol level of 250. Next, we will visualize in a different way that is called a partial residual plot. In this plot, it will show the effect of one covariate only while the other covariates are fixed. This shows even the smaller discrepancies. So, the plot will not be as smooth as before. Remember, the small discrepancies are not reliable if the sample size is not very large.

from statsmodels.graphics.regressionplots import add_lowess
fig = result.plot_partial_residuals("Age")
ax = fig.get_axes()[0]
ax.lines[0].set_alpha(0.5)
_ = add_lowess(ax)

Image for post

This plot shows that the heart disease rate rises rapidly from the age of 53 to 60.

Prediction

Using the results from the model, we can predict if a person has heart disease or not. The models we fitted before were to explain the model parameters. For the prediction purpose, I will use all the variables in the DataFrame. Because we do not have too many variables. Let’s check the correlations amongst the variables to check if there is anything unusual.

df['ChestPain'] = df.ChestPain.replace({"typical":1, "asymptomatic": 2, 'nonanginal': 3, 'nontypical':4})df['Thal'] = df.Thal.replace({'fixed': 1, 'normal': 2, 'reversable': 3})

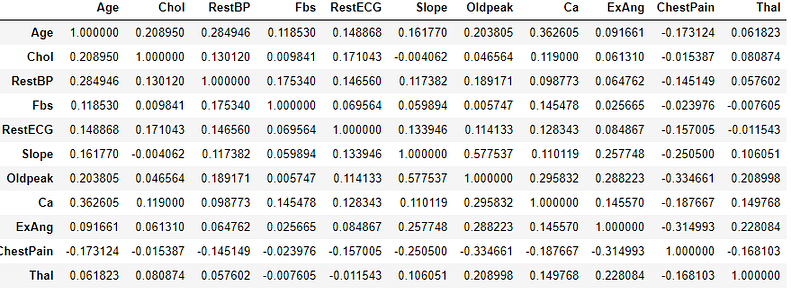

df[['Age', 'Sex1', 'Chol','RestBP', 'Fbs', 'RestECG', 'Slope', 'Oldpeak', 'Ca', 'ExAng', 'ChestPain', 'Thal']].corr()

We can see that each variable has significant correlations with other variables. I will use all the variables to get a better prediction.

model = sm.GLM.from_formula("AHD ~ Age + Sex1 + Chol + RestBP+ Fbs + RestECG + Slope + Oldpeak + Ca + ExAng + ChestPain + Thal", family = sm.families.Binomial(), data=df)
result = model.fit()
result.summary()

Image for post

We can use the predict function to predict the outcome. But the predict function uses only the DataFrame. So, let’s prepare a DataFrame with the variables and then use the predict function.

X = df[['Age', 'Sex1', 'Chol','RestBP', 'Fbs', 'RestECG', 'Slope', 'Oldpeak', 'Ca', 'ExAng', 'ChestPain', 'Thal']]
predicted_output = result.predict(X)

Image for post

The predicted output should be either 0 or 1. It’s 1 when the output is greater than or equal to 0.5 and 0 otherwise.

for i in range(0, len(predicted_output)):
    predicted_output = predicted_output.replace()
    if predicted_output[i] >= 0.5:
        predicted_output = predicted_output.replace(predicted_output[i], 1)
    else:
        predicted_output = predicted_output.replace(predicted_output[i], 0)

Now, compare this predicted_output to the ‘AHD’ column of the DataFrame which indicates the heart disease to find the accuracy:

accuracy = 0
for i in range(0, len(predicted_output)):
    if df['AHD'][i] == predicted_output[i]:
        accuracy += 1
accuracy/len(df)

The accuracy comes out to be 0.81 or 81% which is very good.

Conclusion

In this article, I tried to explain the statistical model fitting, how to interpret the result from the fitted model, some visualization technique to present the log-odds with the confidence band, and how to predict a binary variable using the fitted model results. I hope this was helpful.
